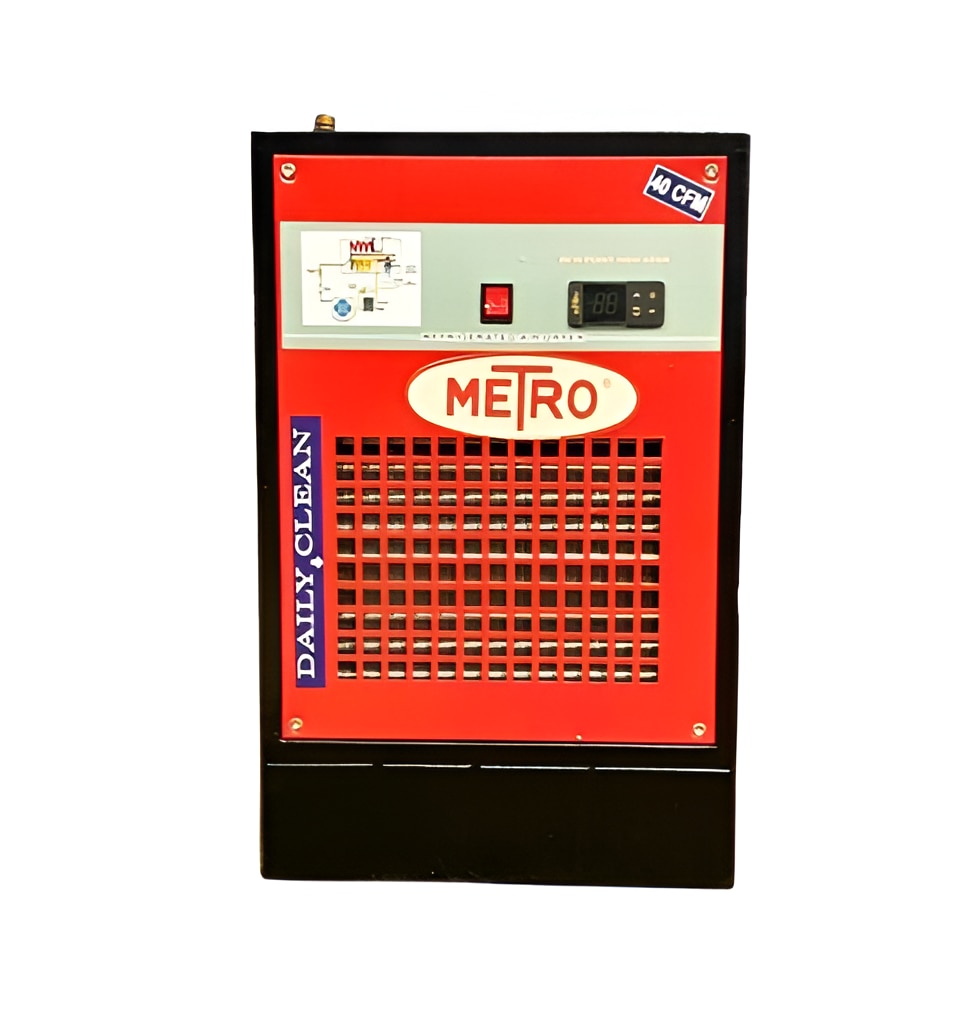

Refrigeration Air Dryers

Refrigeration air dryers remove moisture from compressed air by cooling it to roughly 3`C

(37`F), causing water to condense and drain away. They utilize a refrigerant circuit, heat exchanger, and separator to protect equipment from corrosion. Ideal for general industrial applications, they achieve a pressure dew point of Class 4 or higher (+3`C

to +10`C), ensuring dry, reliable air.

Key Details and Components

Working Principle: Warm, saturated air enters an air-to-air heat exchanger, is pre-cooled, then cooled further in an air-to-refrigerant evaporator. Water condenses, is trapped in a separator, and removed by an auto-drain valve. Finally, the dry air is reheated to prevent pipe sweating.

Key Components: Refrigerant compressor, condenser, expansion valve, evaporator, air-to-air heat exchanger, moisture separator, and automatic drain.

Types:

Non-Cycling: Constantly running, which is cheaper initially but less efficient.

Cycling/VSD: Cycles on/off or adjusts speed to match load, significantly saving energy.

Performance: Achieves a pressure dew point of typically + 3`C

to 10`C + (37`F to 10`F).

Cooling Methods: Available in air-cooled (most common) or water-cooled variants.

Applications & Advantages

Benefits: Prevents corrosion, tool damage, and product contamination. Reliable, affordable, and requires minimal maintenance.

Common Uses: General manufacturing, pneumatic tools, workshop air, and painting applications.

Mellcon Engineers

Operational Considerations

Limitations: Cannot reach the ultra-low dew points needed for specialized, sub-freezing applications (which require desiccant dryers).

Maintenance: Regularly check auto-drains and clean condenser coils.

Important Specifications

Inlet Temperature: Usually designed for around

35`C (95`F) or higher.

Pressure: Standard operation typically around 7 bar(e) / 102 psig.
